shoes machine,shoes heel nailing machine Performance and paramete
View:

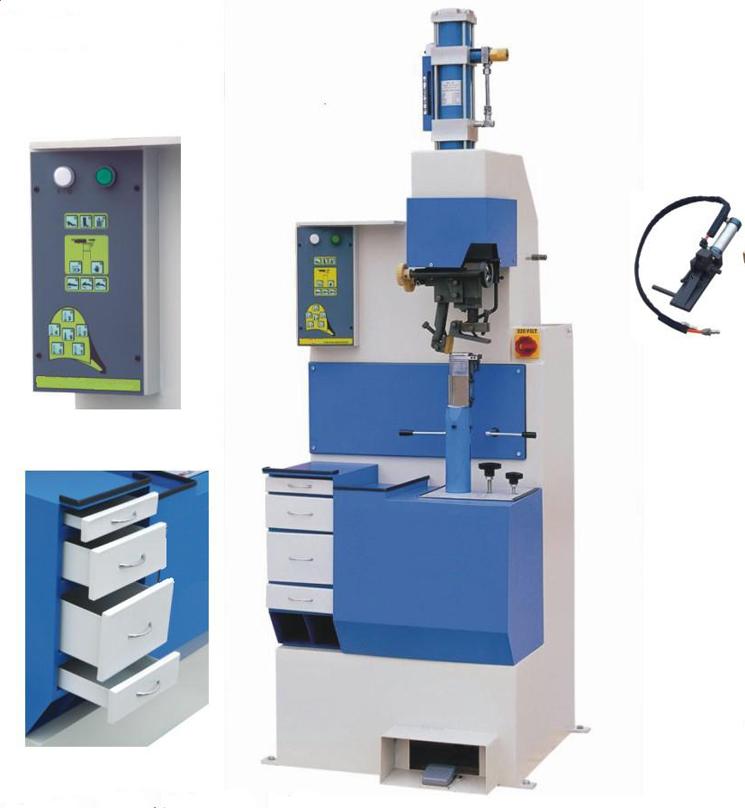

shoes machine,Heel nailing machine is applicable to nailing operation of any shoes/boots for men and women.

The imported PLCcontrol system can achieve an accurate and effcicent operation.

The gasoline balance cylinder can press heel of any height and protect heel form damage.

It is economical and practical for no need of pressing mould.

The nailing box can provide 1-12 pieces 6-28mm nails and screws of any lehgth.It is provided

with automatic nailing order selection function.

The nailing angle can avoid penereating through heel.The nail charghing arm of automatic nail

feeding device is fixed with safety device,which can keep the operator form injury.
The three nailing mode options can secure the heel form breaking for over pressure of striking.

Model

DF-682

DF-682A

Dimension

800*720*2100mm

800*720*2100mm

N.W

420kg

350kg

Air cons

0.6Mpa

0.6Mpa

Power

0.2kw

0.2kw

Voltage

220V/50Hz

220V/50Hz

Production

2000pairs/8hrs

1200pairs/8hrs

heel nailing machine
