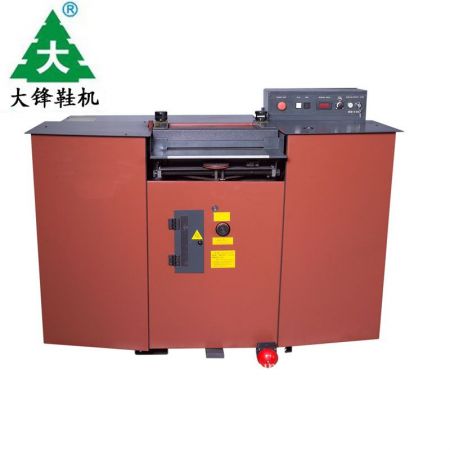

PLC band knife splitting machine

Device display
  • Equipment details
  • PLC band knife splitting machine

    Indicate the splitting thickness by number,the infinitely variable adjustment of feeding.

    Adjusting knife grinding with the single handle device and automatic control equipment when start.
    With automatic feed registration device,no need to adjust cutting tool.
    Adjust the clearance of pressure pad and cutting tool automatically to make the splitting precision much higher.
    Automatic detection system of electronic phase.
    Automatic pause system when leather material entangles in .
    Freestangding set of dust absorbing and knife grinding dust absorbing.
    The outsize flying wheel makes the operation of bank knife more steady and exact.
    The longer band knife of 3570mm is durable and economy,which reduces the cost.
    The accurate rail makes the movement of flying wheel more reliable,and the replacement
    of band knife more easy,quick and convenient.
    Split different leather,pressure of plitting can be adjusted automatically.
    Appropriate working height can reduce the tire of operation.

    The mechanical parts always lubricate.


         Model

    DF-420

    Maximal width of split

    420mm

    Max thickness of split

    8mm

    Min thickness of spli

    0.5/0.15mm

    Specification of bank knife

    0.7×50×3500

    Feeding speed

    Stepless speed change

    working pressure

    mec

    power

    2.2/kw

    Net weight

    635kg

    Exterior size

    1600×1100×1300mm

    Parking size

    1800×1200×1500mm
