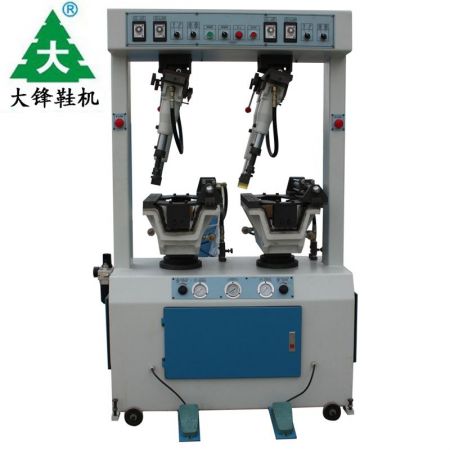

      This machine is fully controlled by hydraulic system. It is suitable for outsole attaching of jogging shoes

    walled sports shoes and casual shoes.The operation of outsole preessing,and front-rear pressing can
    be accomplished simultaneously or respectively. The heavy pressing which helps the shoe industry upgrading.
    1\There is a prepared oil-tank to supplement ol when cylinder rising which makes the rising faster and saves
     the operation time to increase benefit.
    2\The hydraulic automatic balancing system is adopted for the machanism of pressing rods.The height of  rods
    need no manual adjustment,  which helps simplify operaton.
    3\The design of automatic bias angles setting for the machanism of pressing rods  makes shoes locating easy
    and even for boots.
    4\When the mechanism of front-rear pressing receds,a special circiut device is adopted to control the receding
    stroke, and the proper receding distance is acccordingly for locating different size of shoes.
    5\There is a peressure adjusting function for every operation which makes the pressing result pefect.
    6\Automatic balancing rods and swing attaching mechanism
    The  height of attaching rods is controlled by hydraulic automatic balance system so that it is noe necessary to
    adjust the attaching rods when the heightt of last is different also it could ensure the pressure of the two attaching
     rods almost the same and the attaching power on every point of the sole is the same .The attaching rods can
    swing simultaneously.It is convient to put and take out o fthe last.
    The design is better than the old design of the machine with fixed attached rods.
    7\Side attaching machanism
    The side attaching adopts whole hydraulic control. There are nine pcs of rubber foaming pressing objiects to make a
    tight pressing according to the  shape of shoes. Each foaming pressing object is ontrolled by an individual cylinder
     which pressure reaches to 250-300kgs.Two sets of these foaming pressing objects each in the front and the rer for
    options to ensure th ebest performance of side attaching.
    8\Special function for DF-818B
    a. There are eighteen pressing pads on the bottom of the pressing machanism.The pads are controlled by cylinders to
    up and down to firm the shape of different shoes.
    b.The pressing pads can be changed with different height ones or be modified to meet different shapes of outsoles
    without using models so as to save much cost.
    MODEL
    DimensionsL*W*H

    VOLTAGE

    N.W
    CONS
    power
    DF-818A
    1080*1180*1950mm

    380V/50Hz

    1280KG
    20-50Kgs/c㎡
    3HP
    DF-818B
    1080*1180*1950mm
    380V/50Hz
    1280KG
    20-50Kgs/c㎡
    3HP
    DF-818C
    1080*1180*1950mm
    380V/50Hz
    1280KG
    20-50Kgs/c㎡
    3HP
